คำอธิบาย
| Brand | TP-LINK |
| Model | TL-PoE150S |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af |
| LED Indicator | PWR |

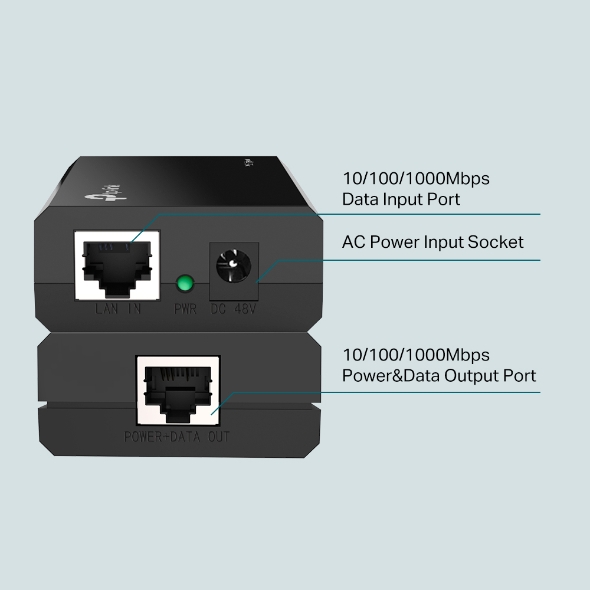

| Interface | 2 x 10/100/1000Mbps RJ45 Port AUTO Negotiation/AUTO MDI/MDIX 1 x 48VDC POWER INPUT PORT |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux. |
| Features | Compatible With IEEE 802.3af Compliant PDs Delivers Power Up To 100 Meters Auto-Determine The Necessary Power Requirements |
| Power Supply | 15.4W (Max. 48VDC) |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Certification | FCC, CE, RoHS |
| Package Contents | Gigabit PoE Injector TL-POE150S Power Adapter RJ45 Cable Installation Guide |
| Dimension | (W x D x H) : 8.08 x 5.40 x 2.40 cm |
| Net Weight | 0.00 KG |
| Package Dimension | (W x D x H) : 16.00 x 20.00 x 7.00 cm |
| Gross Weight | 0.33 KG |
| Volume | 2,240.00 cm3 |
