| Brand | GIGABYTE |
| Model | P550B |
| Type | ATX |
| Power Capacity | 550W |
| Input Voltage | 100-240 Vac(full range) |
| Input Current | 8-4 A |
| Input Frequency Range | 60-50 Hz |
| Operating Temperature | N/A |

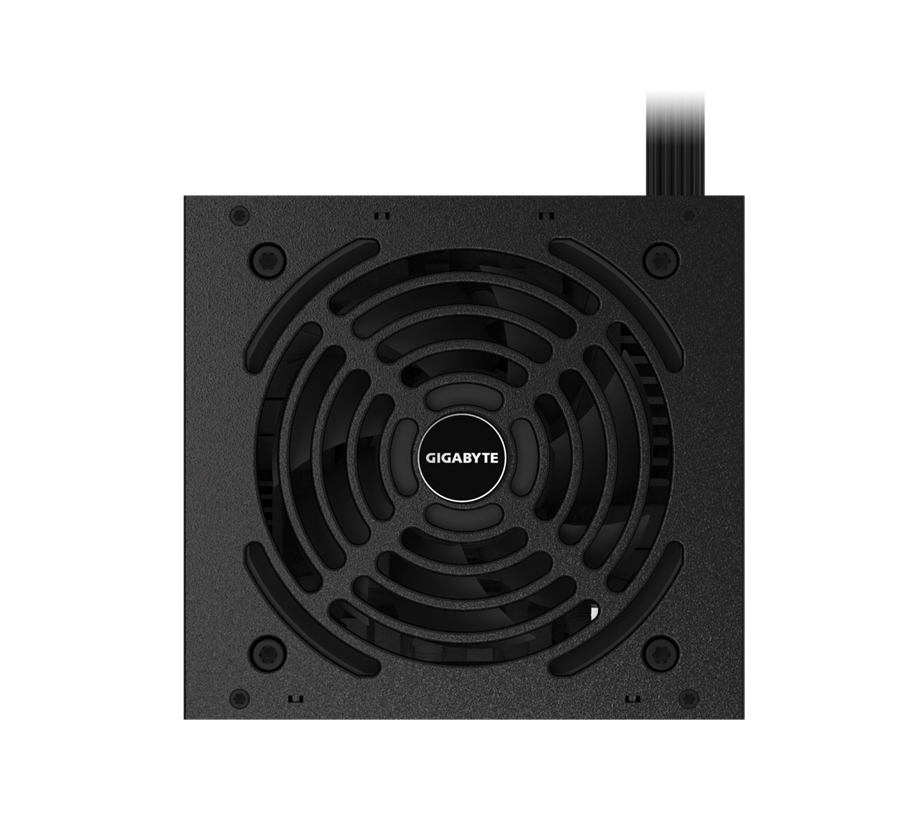

| Fan Size | 120mm Hydraulic Bearing (HYB) Fan |
| Efficiency | 85% at typical load |
| MTBF | >100,000 hours |
| Safety Regulation | N/A |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Certification | 80 Plus Bronze |
| Modular | Non Modular |
| ATX Main Connector | (20+4 Pin) x 1 Connector |
| CPU Power Connector | (4+4 Pin) x 1 Connector |
| PCIe Power Connector | (6+2 Pin) x 2 Connectors |
| SATA Power Connector | 6 Connectors |
| Peripheral Power Connector | 3 Connectors |
| Floppy Power Connector | 1 Connector |
| RGB Power Connector | None |
| PSU Length | 140mm |
| Dimension | (W x D x H) : 15.00 x 14.00 x 8.60 cm |
| Net Weight | 0.00 KG |
| Package Dimension | (W x D x H) : 21.00 x 25.00 x 12.00 cm |
| Gross Weight | 2.00 KG |
| Volume | 6,300.00 cm3 |
