| Brand | GIGABYTE |

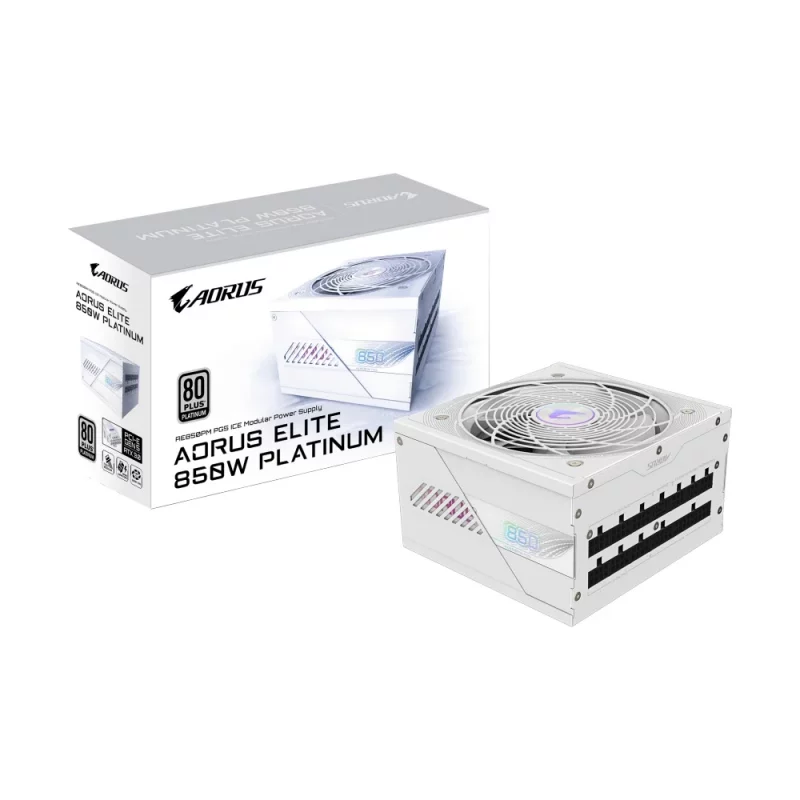

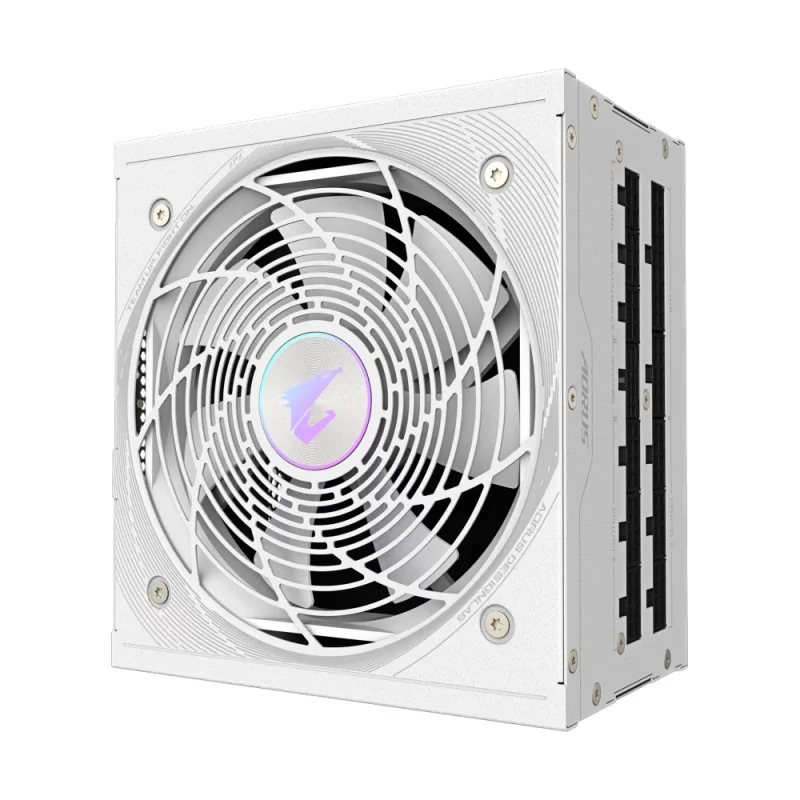

| Model | GP-AE850 PM PG5 ICE |
| Type | ATX 12V v3.0 |
| Power Capacity | 850W |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 12-6A |
| Input Frequency Range | 60-50 Hz |
| Operating Temperature | N/A |
| Fan Size | 120mm |
| Efficiency | 92% at typical load |
| MTBF | >100,000 hours |
| Safety Regulation | N/A |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Certification | 80 PLUS |
| Modular | FULL Modular |
| ATX Main Connector | (20+4 Pin) x 1 Connector |
| CPU Power Connector | (4+4 Pin) x 2 Connector |
| PCIe Power Connector | (16 Pin) x 1 Connector (6+2 Pin) x 6 Connector |
| SATA Power Connector | 8 Connector |
| Peripheral Power Connector | 4 Connector |
| Floppy Power Connector | None |
| RGB Power Connector | None |
| PSU Length | 150mm |
| Dimension | (W x D x H) : 14.00 x 15.00 x 8.60 cm |
| Net Weight | 0.00 KG |
