คำอธิบาย
| Brand | ThreeBoy |
| Model | RQ200 (Port USB/LAN) |
| Print Method | Direct Thermal |
| Processor | N/A |
| Memory | NV Flash buffer : 256KBytes Data receive buffer : 64 KBytes |
| Resolution | 203 x 203 dpi (Maximum) Print columns : 576 dots/line or 512 dots/line |
| Print Speed | 200mm/sec |
| Media | Paper Roll : 79.5±0.5mm Dimeter : 83mm Paper Thickness : 0.06~0.08mm กระดาษความร้อน 80x80mm (แกนใหญ่) |

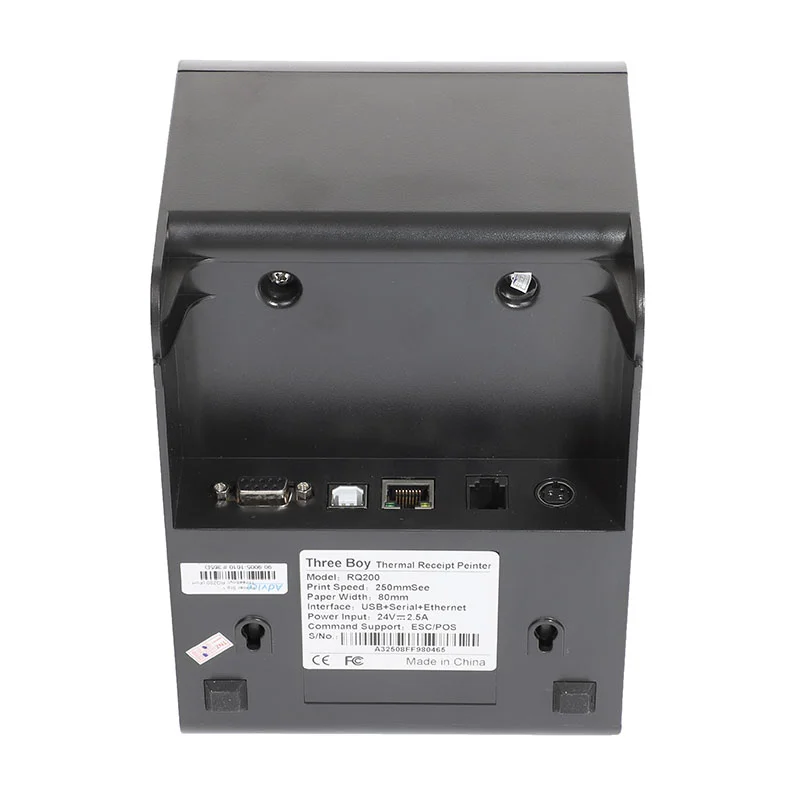

| Interface | 1 x USB 2.0 1 x LAN RJ45 1 x Serial Port 1 x RJ11 (Cash Drawer) |
| Sensor | Auto Cutter : Full or Partial ระบบตัดกระดาษอัตโนมัติ : 500,000 ครั้ง |
| Font | ANK, Font A : 12 x 24 dots (1.5×3.0mm) Font B : 9 x 17 dots (1.1×2.1mm) Simplified/traditional Chinese: 24×24 dots |
| Barcode | Bar code : UPC-A/ UPC E/ JAN13(EAN13)/ JAN8(EAN8)/ ITF/ CODE39/ CODE93/ CODE128 |
| Power Supply | Input : AC100~220V (50/60HZ) Output : DC 24V=>2.5A Cash drawer Control : DC 24V=>1A |
| Enviroment | Operating Conditions :Temperature(0~45 OC,), humidity(10~80%) Storage conditions : Temperature(-10~60 OC), humidity(10~90%) |
| Special Features | Command : Compatible with ESC/POS อายุการใช้งานหัวพิมพ์ : 100 กิโลเมตร Print beeper Support Black mark Support Kitchen print Support |
| Dimension | (W x D x H) : 14.35 x 18.30 x 13.50 cm |
| Net Weight | 1.36 KG |
| Package Dimension | (W x D x H) : 22.00 x 23.00 x 22.00 cm |
| Gross Weight | 1.70 KG |
| Volume | 11,132.00 cm3 |
