คำอธิบาย
| Brand | ASUS |
| Model | RT-AX5400 |
| Standards | IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) |
| Antennas | External antenna x 4 (non-detachable) |
| Frequency | 2.4G Hz / 5 GHz |
| Wireless Functions | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth |
| Processor Specs | 1.5 GHz tri-core processor |
| Size of RAM | 256 MB Flash 512 MB RAM |
| LEDS | 1x Power 1x 2.4G 1x 5G 1x LAN 1x WAN |

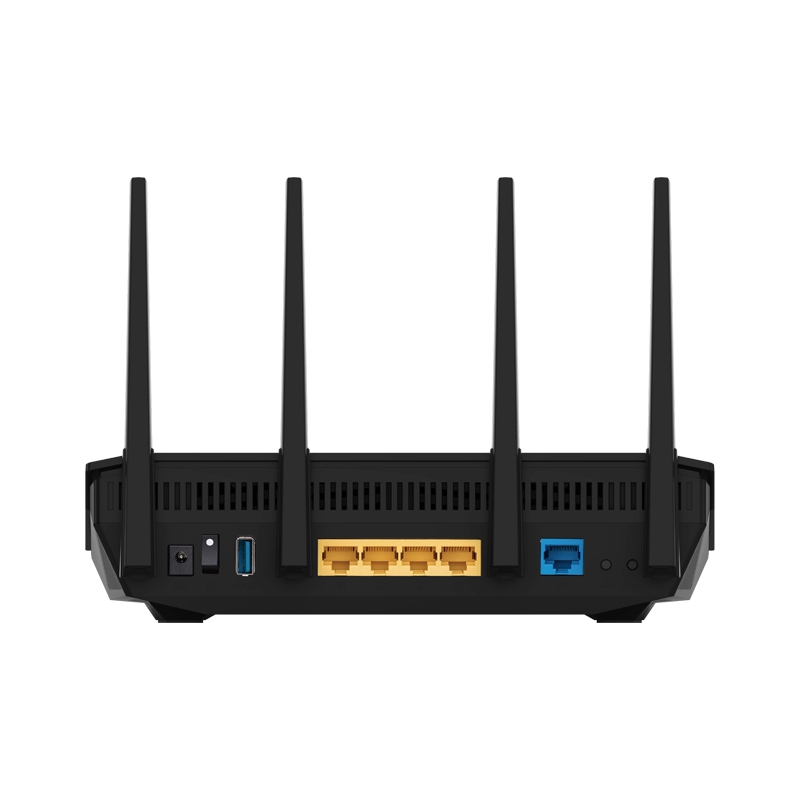

| Interface | 1x RJ45 for Gigabits BaseT for WAN 4x RJ45 for Gigabits BaseT for LAN 1x USB 3.2 Gen 1 |
| USB Interface | 1x USB 3.2 Gen 1 |
| Button | WPS Button, Reset Button, Power Switch |
| Data Rate | 802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 4 (802.11n) : up to 300 Mbps WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps |
| Operation Mode | Wireless router mode Access point mode Media bridge mode Repeater mode AiMesh node mode |
| Firewall | • Maximum Firewall Keyword Filter : 64 • Maximum Firewall Network Service Filter : 32 • Maximum Firewall URL Filter : 64 |
| VPN Support | Instant Guard VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server OVPN VPN Server PPTP VPN Server WireGuard VPN Fusion |
| Power Supply | AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 1.75 A current |
| Package Contents | RT-AX5400 WiFi router RJ-45 cable Power adapter Quick Start Guide Warranty card |
