คำอธิบาย
| Brand | MikroTik |

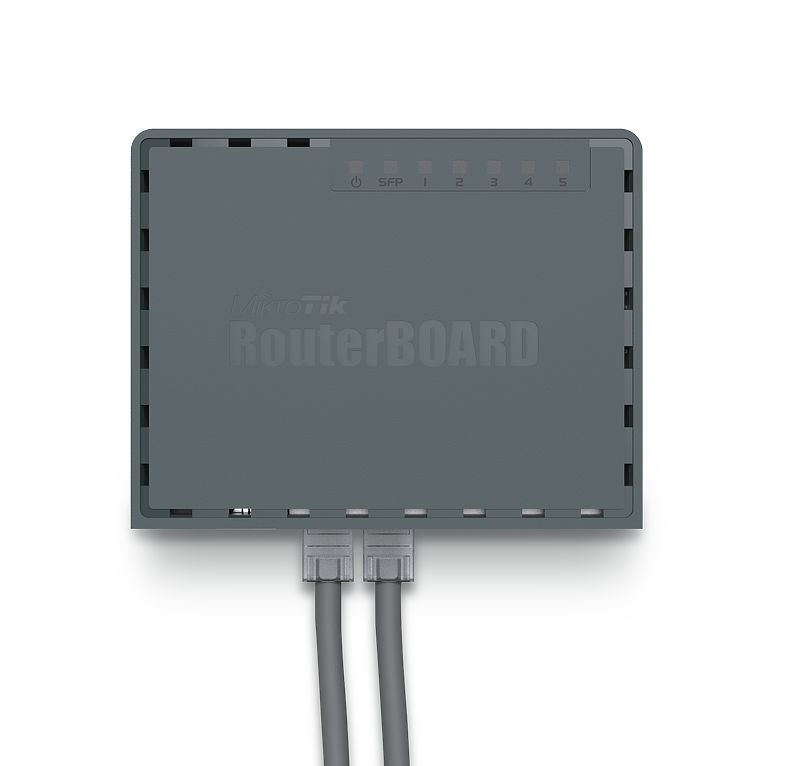

| Model | RB760iGS |
| Processor Specs | CPU MT7621A |
| CPU CORE COUNT | CPU core count : 2 CPU Threads count : 4 |
| CPU nominal frequency | 880 MHz |
| Size of RAM | Size of RAM : 256 MB Storage size : 16 MB Storage type : FLASH |
| Interface | 5 x 10/100/1000 Ethernet ports 1 x SFP ports |
| USB Interface | Number of USB ports : 1 USB Power Reset : Yes USB slot type : USB type A Max USB current (A) : 1 |
| Memory | Memory card type microSD Memory Cards : 1 |
| Operation Mode | RouterOS |
| Features | PCB temperature monitor Voltage Monitor |
| Power Supply | Number of DC inputs : 2 (DC jack, PoE-IN) DC jack input Voltage : 12-57 V Max out per port output (input > 30 V) : 500 mA Max out per port output (input < 30 V) : 500 mA Max total out (A) : 500 mA |
| Inrush Current | Max power consumption : 24 W Max power consumption without attachments : 6 W |
| Power Supply (PoE) | PoE in 802.3af/at PoE out Passive PoE up to 57V PoE in input Voltage 12-57 V |
| Power Consumption | Max Power consumption 11 W |
| Environment | Tested ambient temperature : -40°C to 70°C |
| Package Contents | 24V 1.2A power adapter |
| – | License level 4 |
| Package Dimension | (W x D x H) : 12.00 x 18.00 x 5.00 cm |
| Gross Weight | 0.34 KG |
| Volume | 1,080.00 cm3 |
