คำอธิบาย
Brand | TP-LINK |

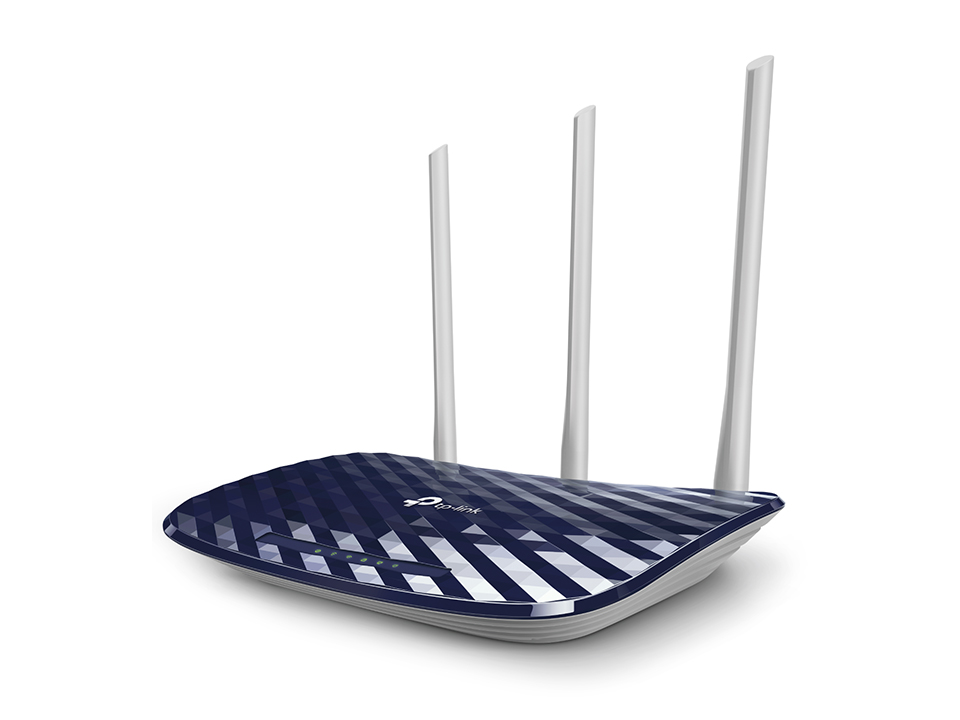

Model | Archer C20 V5 |
Standards | IEEE 802.11ac/n/a 5GHz IEEE 802.11b/g/n 2.4GHz |
Antennas | 2 x 2.4GHz Antennas 1 x 5GHz Antenna |
Transmit/Receive | CE: <20dBm(2.4GHz) <23dBm(5GHz) |
Frequency | 2.4GHz and 5GHz |
Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
Safety Standards | 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption |
Interface | 4 x 10/100Mbps LAN ports 1 x 10/100Mbps WAN port |
Button | WPS/Wi-Fi Button Reset Button Power On/Off Button |
Data Rate | 5GHz: Up to 433Mbps 2.4GHz: Up to 300Mbps |
Operation Mode | Router Mode Access Point Extender Mode |
Management | Access Control Local Management Remote Management |
Firewall | DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding |
VPN Support | VPN Pass-Through : PPTP, L2TP, IPSec |
Features | Parental Control, Local Management, Control, Host List, Access Schedule, Rule Management |
System Requirements | Microsoft Windows XP/Vista/7/8/8.1/10, MAC OS, UNIX or Linux Internet Explorer, Firefox, Chrome, Safari or other Java-enabled browsers Cable or DSL or Fiber Modem/Terminal Subscription with an Internet Service Provider (for Internet access) |
Power Supply | External Power Supply 9V/0.6A(EU), 9V/0.85A(US) |
Environment | Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Certification | CE, RoHS |
Package Contents | AC750 Wireless Dual Band Router Archer C20 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
