คำอธิบาย
| Brand | TP-LINK |

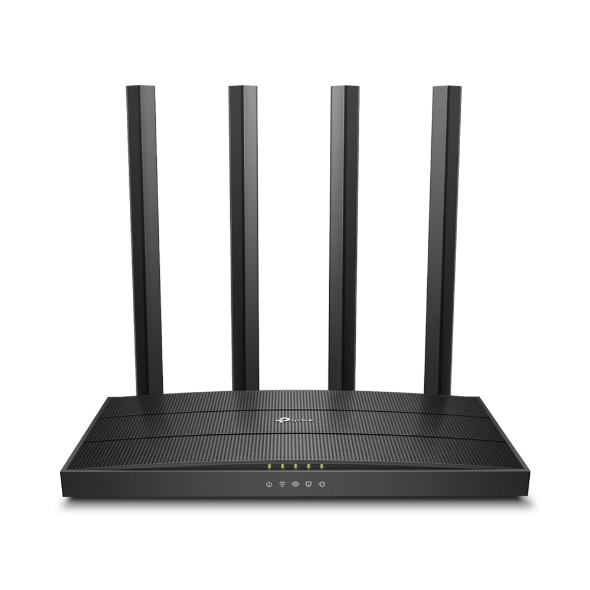

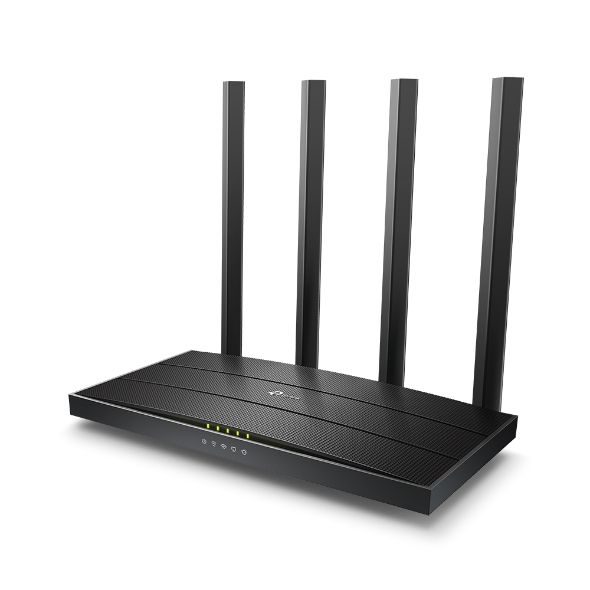

| Model | Archer C6 V4 |
| Standards | Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
| Antennas | 4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areasBeamforming Concentrates wireless signal strength towards clients to expand WiFi range |
| Transmit/Receive | WiFi Transmission Power CE EIRP: <20dBm(2.4GHz) <23dBm(5GHz) FCC: <30dBm(2.4GHz & 5GHz)WiFi Reception Sensitivity 5GHz: 11a 6Mbps:-93dBm; 11a 54Mbps:-78dBm 11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm; 11ac HT80 mcs9:-62dBm; 2.4GHz: 11g 54Mbps:-78dBm; 11n HT20 mcs7:-74dBm; 11n HT40 mcs7:-71dbm; |
| Frequency | AC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 400 Mbps (802.11n) |
| Range | 3 Bedroom Houses |
| Wireless Functions | Dual-Band Allocate devices to different bands for optimal performanceMU-MIMO Simultaneously communicates with multiple MU-MIMO clientsAirtime Fairness Improves network efficiency by limiting excessive occupation |
| Safety Standards | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
| Processor Specs | 1.2 GHz CPU |
| Size of RAM | N/A |
| LEDS | Yes |

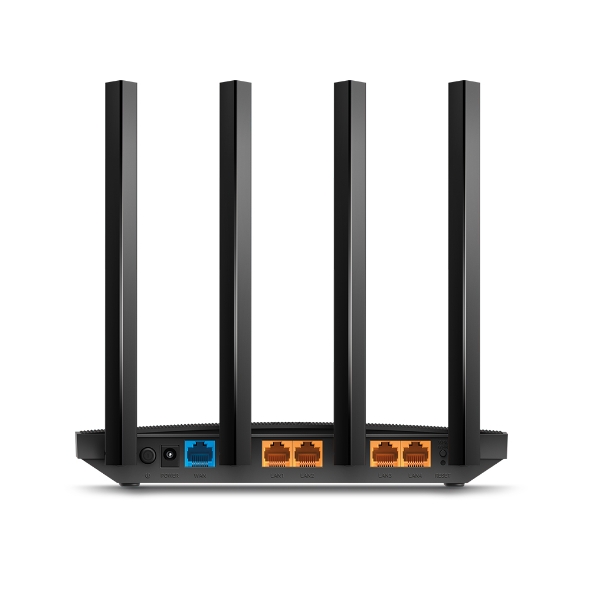

| Interface | 1 x Gigabit WAN Port 4 x Gigabit LAN Ports |
| USB Interface | None |
| Button | WPS/Wi-Fi Button Power On/Off Button Reset Button |
| Operation Mode | Router Mode Access Point Mode |
| Management | Tether App Webpage |
| Firewall | SPI Firewall |
| IPv6 support | Yes |
| Features | Access Control IP & MAC Binding Application Layer Gateway Guest Network OneMesh™ Supported Parental Controls NAT Forwarding IPTV |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Power Supply | 12V / 1A |
| Environment | Operating Temperature: 0°C~40°C (32°F ~104°F) Storage Temperature: -40°C~70°C (-40°F ~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Certification | FCC, CE, RoHS |
| Package Contents | Wi-Fi Router Archer C6 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| Dimension | (W x D x H) : 21.50 x 11.70 x 3.20 cm |
| Net Weight | 0.00 KG |
| Package Dimension | (W x D x H) : 24.00 x 35.00 x 8.00 cm |
| Gross Weight | 0.60 KG |
| Volume | 6,720.00 cm3 |
