คำอธิบาย

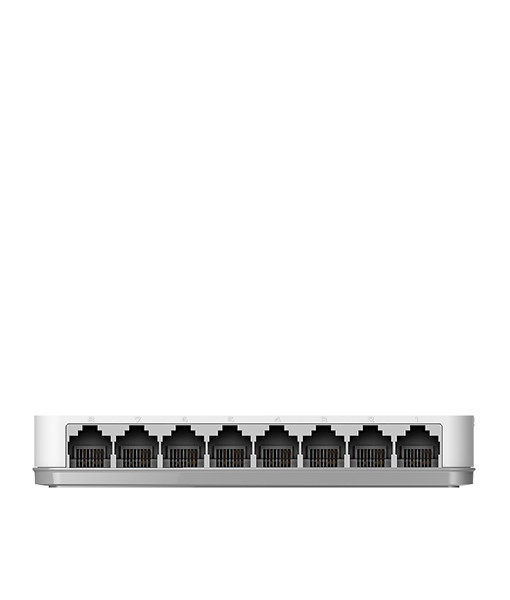

| Brand | D-LINK |
| Model | DES-1008C |
| Network Interface | 10/100 Mbps 8 LAN ports |
| Standards and Protocols | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control IEEE 802.3az Energy-Efficient Ethernet (EEE) |
| Switching Capacity | 1.6 Gbps switching fabric |
| Transmission Method | Store-and-forward |
| MAC Address Table | 2,000 |
| Forwarding Rate | Ethernet: 14,880 pps per port Fast Ethernet: 148,800 pps per port |
| LED Indicators | Per port : Link/Activity/Speed Per device : Power |
| MTBF | 1,579,582 hours |
| Power Supply | DC 5 V / 0.55 A DC jack: Located on side |
| Power Consumption | Power On (Standby) : 0.55 watts Maximum : 1.55 watts |
| Environment | Temperature Operating : 0 to 40 °C (32 to 104 °F) Storage : -40 to 70 °C (-40 to 158 °F) Humidity Operating : 10% to 90% non-condensing Storage : 5% to 95% non-condensing |
| Certifications | CE Class B CE (LVD 2006/95/EC) |
| – | Advanced Features – Auto MDI/MDIX crossover for all ports – Secure store-and-forward switching scheme – Full/half-duplex for Ethernet/Fast Ethernet speeds – Supports 2,048 byte jumbo frames – Back pressure at half-duplex operation – Wire-speed reception and transmission – Store and-Forward switching method – Auto-negotiation for each port – EEE compliant IEEE 802.3 10BASE-T – IEEE 802.3u 100BASE-TX – IEEE 802.3az EEE – IEEE 802.3x flow control |
| Package Dimension | (W x D x H) : 6.00 x 14.00 x 9.00 cm |
| Gross Weight | 0.20 KG |
| Volume | 756.00 cm3 |
