คำอธิบาย
| Brand | APC |
| Model | SMV1000I-MS |
| Type | Line interactive |
| Rated Capacity | 700Watts / 1.0kVA |
| Nominal Input Voltage | 230V |
| Nominal Output Voltage | 230V |
| Input Frequency | 45 – 65 Hz +/- 0.1 Hz Auto-sensing |
| Backup Time | N/A |
| Transfer Time | 2-6 ms typical : 12 ms maximum |
| Display | LCD |

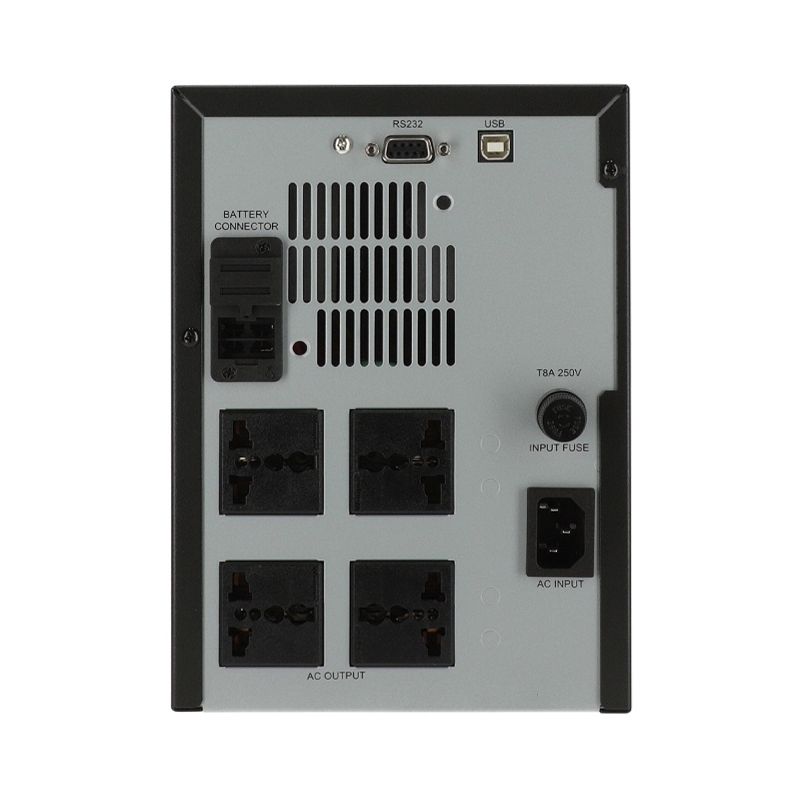

| Input Connections | IEC 60320 C14 |
| Output Connections | 4 x Universal receptacle (Battery Backup) |
| Interface Port | 1 x USB 1 x RS232 |
| Indicator & Audible Alam/ Protection | N/A |
| Battery Type | Lead-acid battery |
| Waveform Type | Sine wave |
| Typical recharge time | 4hour(s) |
| Battery Replacement | APCRBCV206 (7Ah, 24V DC) |
| Features | N/A |
| Cord Length | N/A |
| Environment | Operating Temperature : 0 – 40 °C Operating Relative Humidity : 0 – 95 (Non-condensing) % Operating Elevation : 0 – 3000meters Storage Temperature : -10 – 40 °C Storage Relative Humidity : 0 – 95 (Non-condensing) % Storage Elevation : 0 – 15000meters Audible noise at 1 meter from surface of unit : 45.0dBA Protection Class : IP20 |

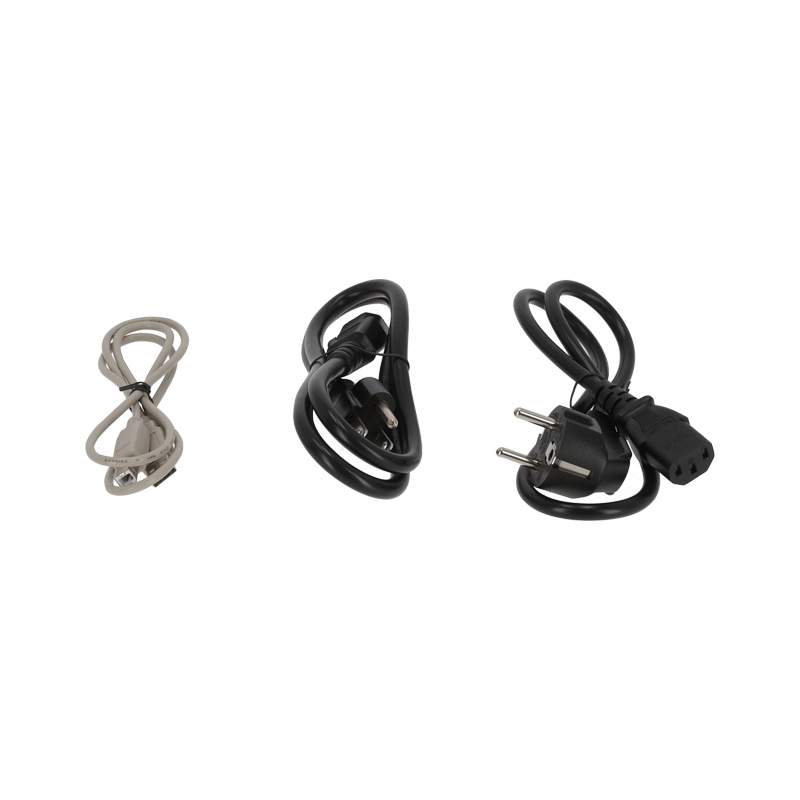

| Package Contents | Documentation CD User manual USB cable |
| Dimension | (W x D x H) : 22.00 x 16.00 x 41.00 cm |
| Net Weight | 13.60 KG |
| Package Dimension | (W x D x H) : 33.90 x 27.20 x 50.80 cm |
| Gross Weight | 16.60 KG |
| Volume | 46,841.66 cm3 |
