คำอธิบาย
Brand | SUN |
Model | Micro |
Type | Line Interactive |
Rated Capacity | 500 Watts / 1000 VA |
Nominal Input Voltage | 220VAC ±35% 50Hz ±10% |
Nominal Output Voltage | 220 VAC ±10% 50Hz ±0.1% |
Backup Time | 15 – 30 Minute (Depend on Load) |
Transfer Time | 2-4 ms |

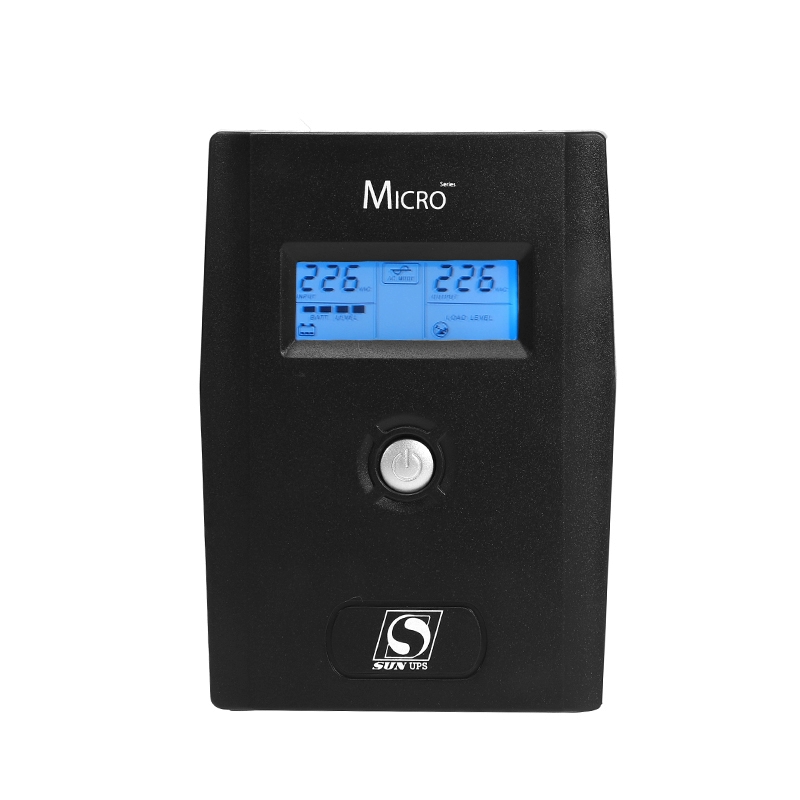

Display | LCD : Input voltage, Output voltage, AC mode Battery mode, Battery level, Load level Overload, Fault, Low battery |

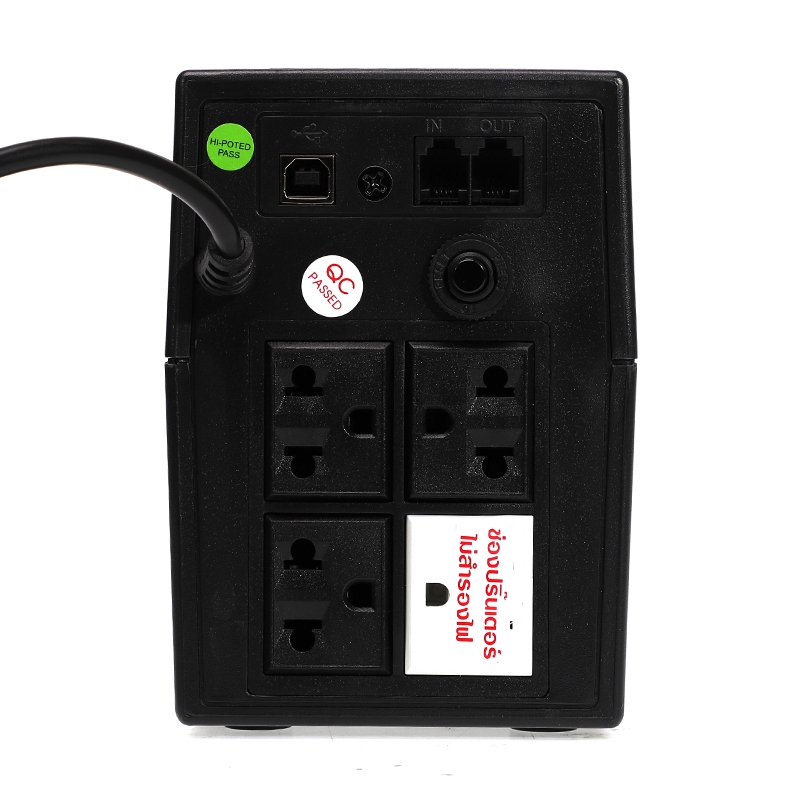

Output Connections | 4 Port (3 Back up+1 Bypass) 1 Port RJ-11 |
Interface Port | USB |
Indicator & Audible Alam/ Protection | Backup mode : Sounding every 10 second Low Battery : Sounding every second Overload : Sounding every 0.5 second |
Battery Type | MAINTANENCE FREE SEALED LEAD-ACID BATTERY |
Waveform Type | Modified sine wave |
Typical recharge time | 6 to 8 Hours ( 90 % After complete Discharged ) |
Battery Replacement | 1 x 12V / 7.2 AH |
Package Dimension | (W x D x H) : 14.00 x 35.00 x 22.00 cm |
Gross Weight | 4.70 KG |
Volume | 10,780.00 cm3 |
