คำอธิบาย
| Brand | SYNDOME |
| Model | ECO ll 1000 |
| Type | Line Interactive |
| Rated Capacity | 1000VA / 630Watt |
| Nominal Input Voltage | 220VAC ±35% |
| Nominal Output Voltage | 220VAC ±10% |
| Input Frequency | 50/60Hz ±10% |
| Backup Time | 15-30 minutes (Depend on load) |
| Transfer Time | Typical 4 ms |
| Display | None |
| Input Connections | Universal plug |

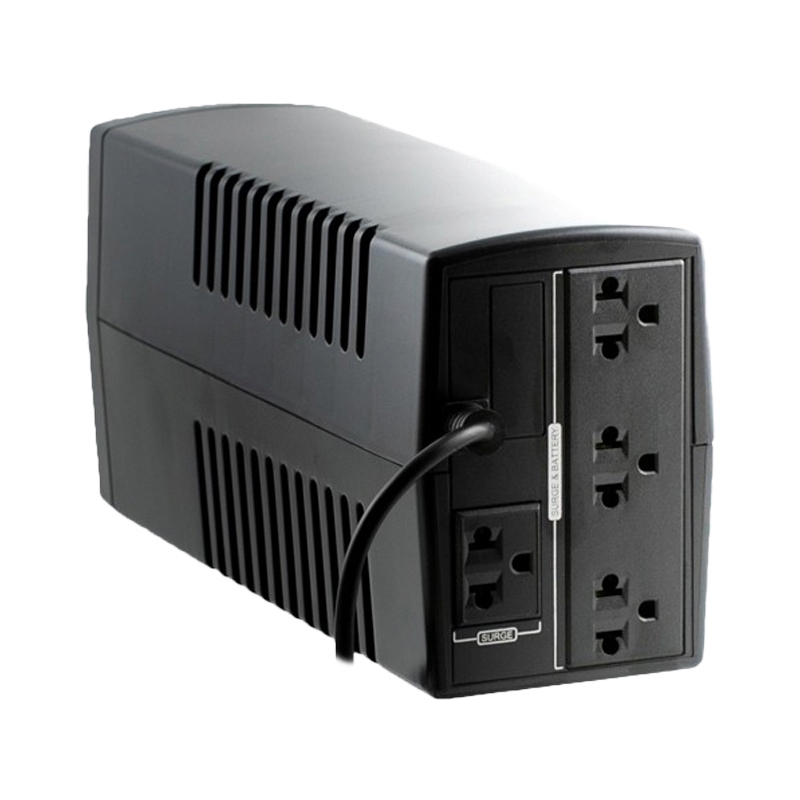

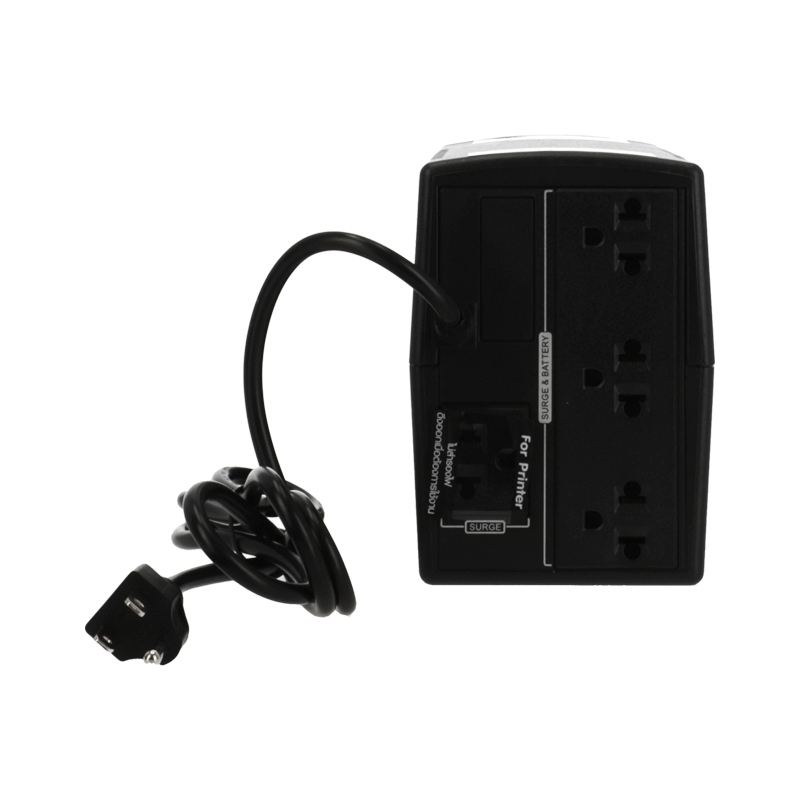

| Output Connections | Back up 3 Ports Bypass 1 Port |
| Interface Port | None |
| Indicator & Audible Alam/ Protection | 3 led status |
| Battery Type | Seal Lead Acid Maintenace Free |
| Waveform Type | Typical 4 ms |
| Typical recharge time | Recharge Time 4-6 hours to 90% after complete discharge |
| Battery Replacement | 1 x 12V7Ah-9Ah |
| Features | N/A |
| Cord Length | N/A |
| Environment | Humidity : 0-90% RH @ 0-40°C (non-condensing) |
| Package Contents | N/A |
