คำอธิบาย

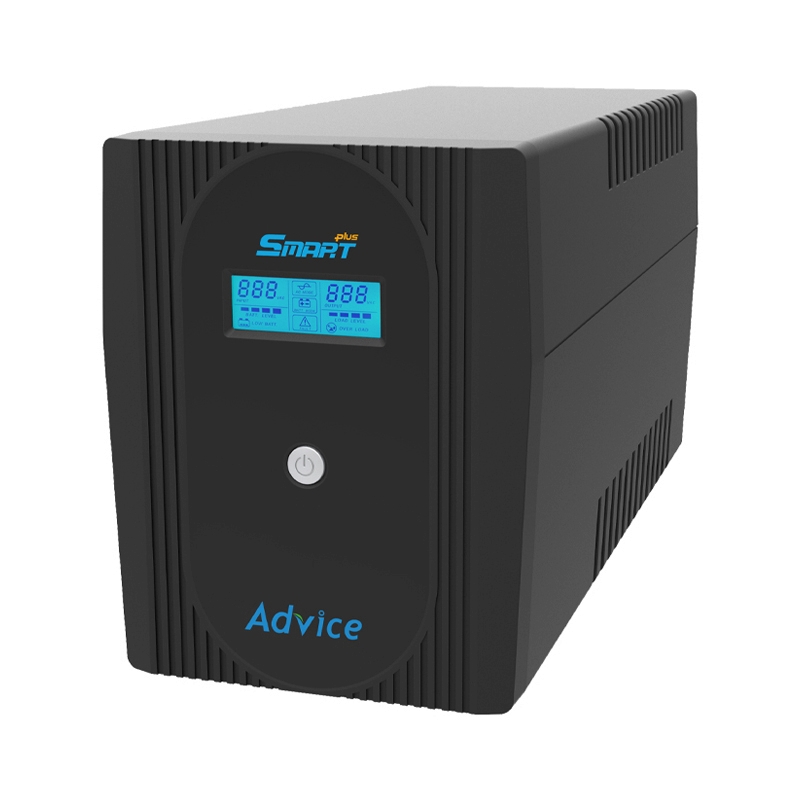

| Brand | ADVICE |
| Model | Smart Plus |
| Type | Line Interactive UPS with simulated sinewave |
| Rated Capacity | 1500 VA / 900 Watt |
| Nominal Input Voltage | VOLTAGE RANGE : 220 Vac +-35% |
| Nominal Output Voltage | • AC VOLTAGE REGULATION (Batt.Mode) : 220 Vac +-5% • FREQUENCY REGULATION : 50Hz +-1% |
| Input Frequency | 50Hz +-10% |
| Backup Time | 15-60 Min. (Depend on load) |
| Transfer Time | Typical 2~4ms, 10ms Max. |

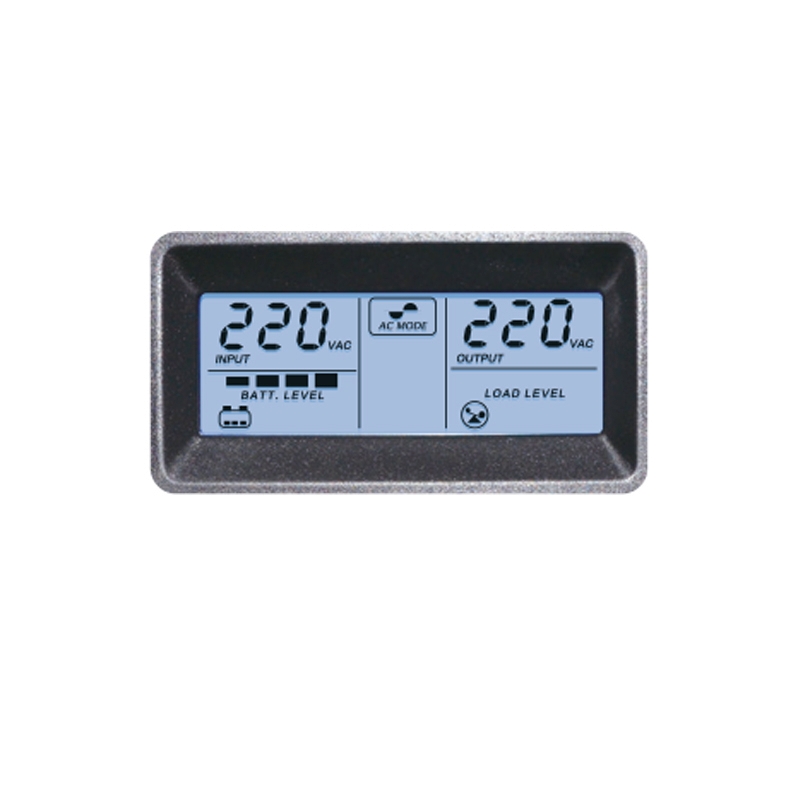

| Display | • AC Mode • Battery Mode • Load Level • Battery Level • Input Voltage • Output Voltage • Fault and Battery Low |
| Input Connections | N/A |

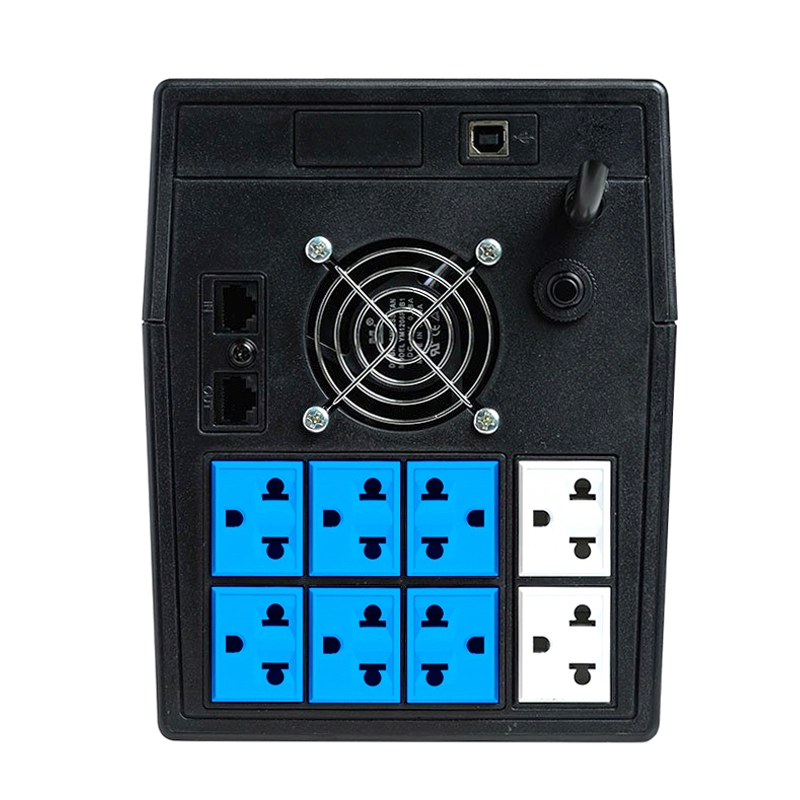

| Output Connections | 8 Outlet ( 6 Backup + 2 Bypass) |
| Interface Port | • USB • RJ45 Modem internet protection |
| Indicator & Audible Alam/ Protection | • Battery mode • Low Battery • Overload • Battery Replacement Alarm • Fault |
| Battery Type | Sealed lead acid maintenance free |
| Waveform Type | Simulated sinewave |
| Typical recharge time | 6~8 Hours to 90% after complete discharge |
| Dimension | (W x D x H) : 38.00 x 15.80 x 19.80 cm |
| Net Weight | 10.10 KG |
