| Brand | Advice |

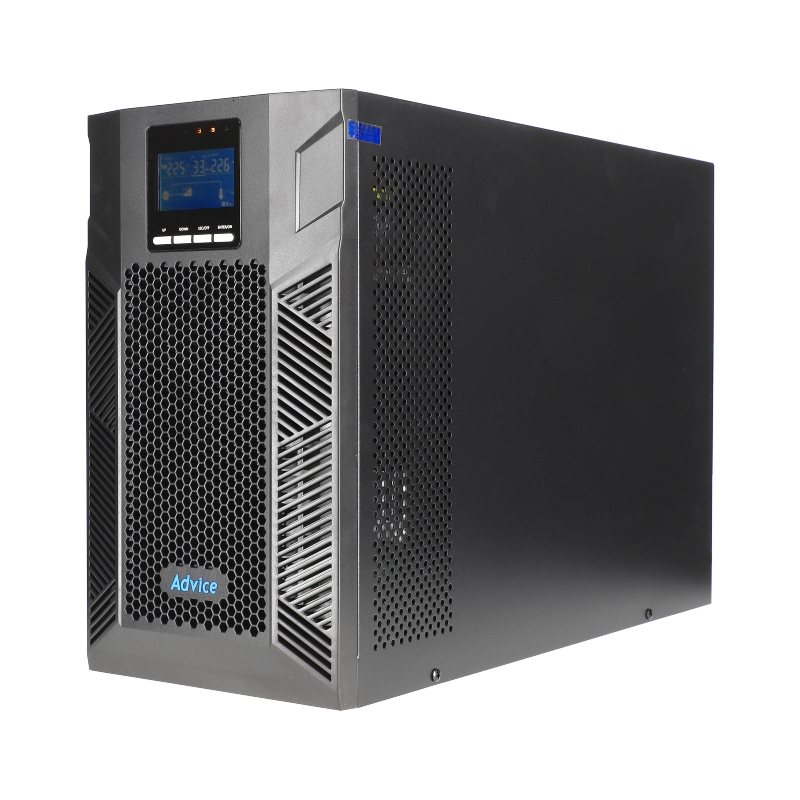

| Model | S 2 KVA |
| Type | True Online |
| Rated Capacity | 2000 VA / 1800 Watt |
| Nominal Input Voltage | • RATED VOLTAGE : 200/208/220/230/240VAC (Selectable) • VOLTAGE RANG : 110VAC+ – 5% -300VAC +-5% • POWER FACTOR : 0.99 • BYPASS VOLTAGE : 170VAC-264VAC (Setting By LCD) • CURRENT HARMONIC (THDi) : <3%(100% Non-Linear Load) |
| Nominal Output Voltage | • RATED VOLTAGE : 220VAC • POWER FACTOR : 0.9 • VOLTAGE REGULATION : 220VAC+-1% • FREQUENCY LINE MODE : 47-53 Hz • FREQUENCY BATTERY MODE : 50/60 Hz+-0.1% |
| Input Frequency | 40-70 Hz |
| Backup Time | Long run unit depends on the capacity of external batteries |

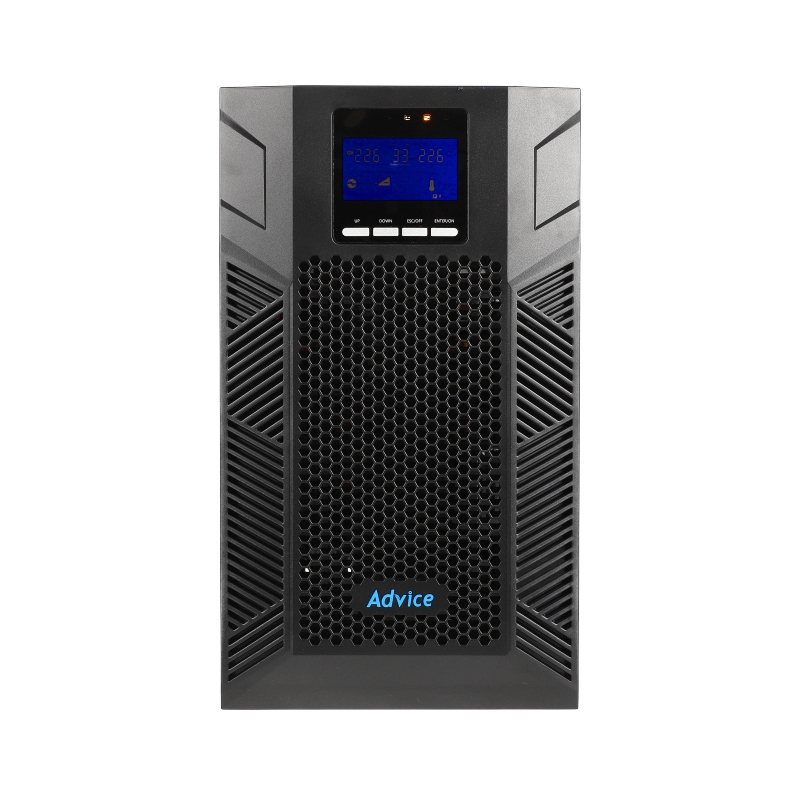

| Display | LCD (Indicator) |

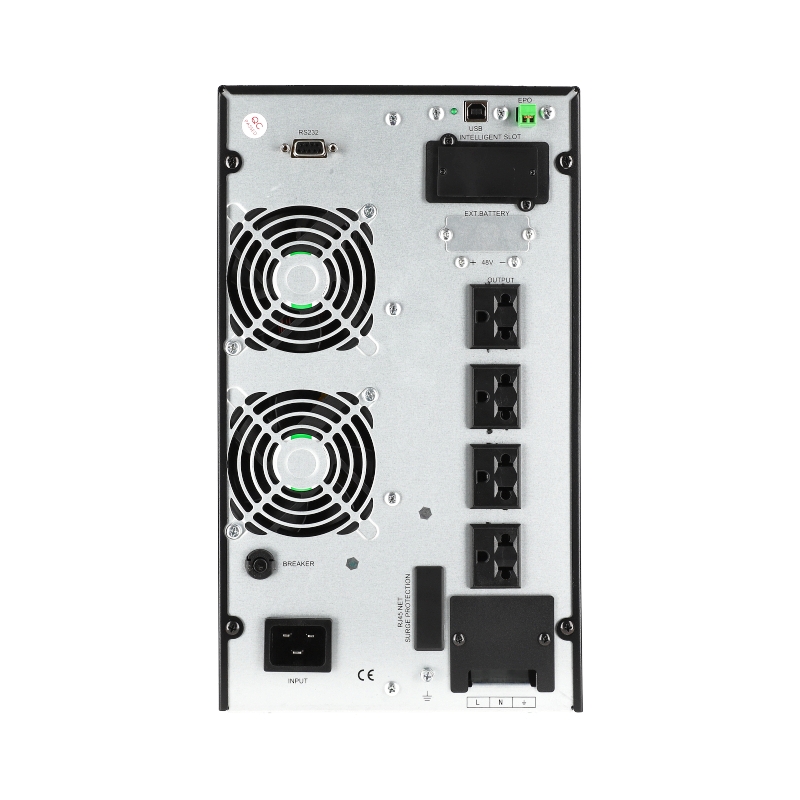

| Output Connections | 3 Outlet (Backup) |

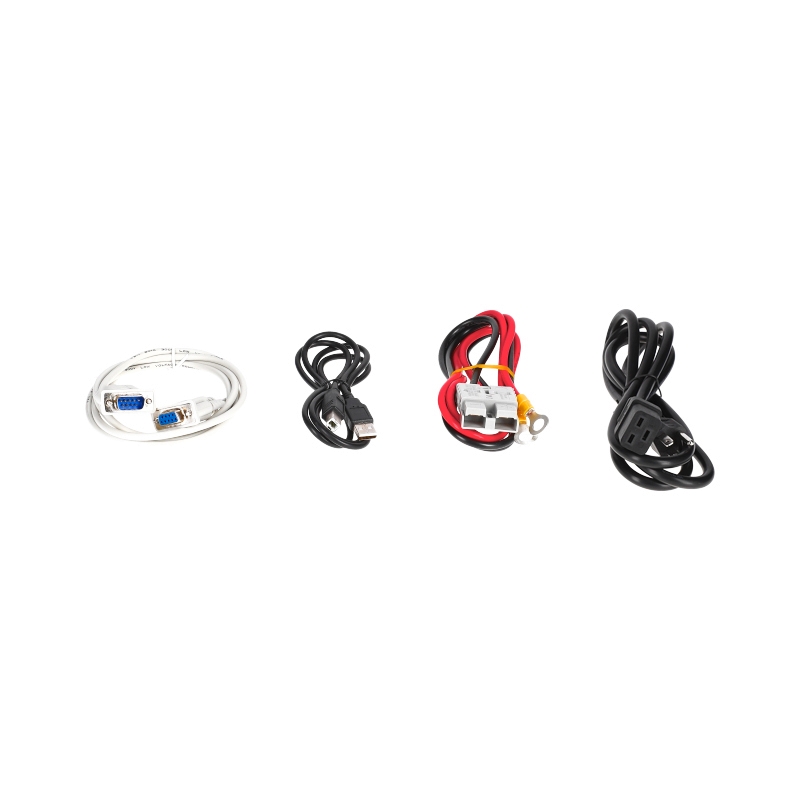

| Interface Port | • RS232 • USB |
| Indicator & Audible Alam/ Protection | • Line mode • Bat.mode • ECO mode • Bypass mode • Battery low voltage • Overload & UPS fault |
| Typical recharge time | 4 hours recover to 90 % capacity |
| Dimension | (W x D x H) : 14.40 x 20.90 x 30.90 cm |
| Net Weight | 14.00 KG |
| warranty | 2*2*0 |
